DN 10 A DN 50
MATIERE : ALUMINIUM

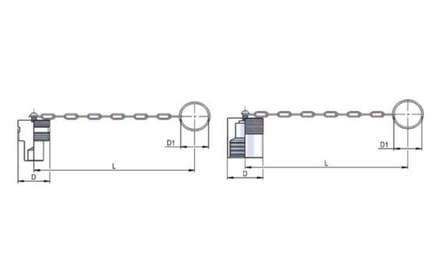

| DN / BG / ISO | D - L - D1 (mm) | REF MALE | D - L - D1 (mm) | REF FEMELLE |
|---|---|---|---|---|
| DN10 - BG2 - ISO 10 | 34 - 240 - 30 | BPCMV1/4-AL | 34 - 240 - 30 | BPCFV1/4-AL |
| DN13 - BG3 - ISO 12.5 | 34 - 240 - 30 | BPCMV1/2-AL | 38 - 240 - 30 | BPCFV1/2-AL |
| DN20- BG4 - ISO 19 | 53 - 300 - 48 | BPCMV-BG4-AL | 48 - 290 - 41 | BPCFV-BG4-AL |
| DN25 - BG5 - ISO 25 | 53 - 290 - 41 | BPCMV1/1-AL | 58 - 300 - 48 | BPCFV1/1-AL |
| DN30 - BG6 - ISO 31.5 | 71 - 400 - 48 | BPCMV5/4-AL | 81 - 400 - 48 | BPCFV5/4-AL |
| DN39 - BG7 - ISO 40 | 98 - 210 - 46 | BPCMV3/2-AL | 85 - 260 - 46 | BPCFV3/2-AL |
| DN50 - BG7 - ISO 50 | 115 - 270 - 46 | BPCMV2/1-AL | 100 - 300 - 46 | BPCFV2/1-AL |
