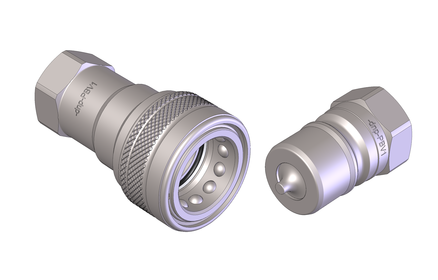

Norme ISO 7241-1B
Obturation : clapet
Accrochage : billes radiales
Matériel : acier Zn-Fe (Cr III)
Taraudages : BSP / NPT
Joint standard : NBR (en option : FKM, EPDM,...)
T°C service : -25°C / +100°C
Pression de service : 100-500 bar
Connexion sous pression : NON

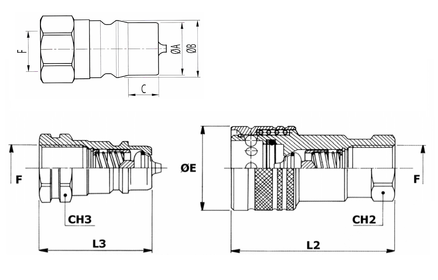

| DN / BG / ISO | F | A - B (mm) | C (mm) | E (mm) | L2 - L3 (mm) | CH2 - CH3 (mm) | REF MALE | REF FEMELLE |
|---|---|---|---|---|---|---|---|---|
| DN04 - BG0 -ISO 5 | G 1/8" | 10.90 - 12.19 | 8.0 | 23.0 | 50.6 - 32.0 | 14 | CMCB-R1/8 | CFCB-R1/8 |
| DN06 - BG1 - ISO 6.3 | G 1/4" | 14.20 - 15.60 | 9.90 | 28.0 | 60.0 - 38.0 | 19 | CMCB-R1/4 | CFCB-R1/4 |
| DN10 - BG2 - ISO 10 | G 3/8" | 19.10 - 19.90 | 12.7 | 35.0 | 67.2 - 43.0 | 22 | CMCB-R3/8 | CFCB-R3/8 |
| DN13 - BG3 - ISO 12.5 | G 1/2" | 23.55 - 25.60 | 12.3 | 44.0 | 75.7 - 48.0 | 27 | CMCB-R1/2 | CFCB-R1/2 |
| DN20 - BG4 - ISO 20 | G 3/4" | 31.45 - 32.75 | 18.9 | 52.0 | 91.5 - 57.0 | 34 | CMCB-R3/4 | CFCB-R3/4 |
| DN25 - BG5 - ISO 25 | G 1" | 37.77 - 40.56 | 21.0 | 60.0 | 105.8 - 65.5 | 41 | CMCB-R1/1 | CFCB-R1/1 |
| DN39 - BG7 - ISO 40.0 | G 1"1/4 | 44.49 - 48.04 | 32.7 | 79.0 | 126.5 - 127.0 | 65 | CMCB-R5/4 | CFCB-R5/4 |
| DN39 - BG7 - ISO 40 | G 1" 1/2 | 44.49 - 48.04 | 32.7 | 79.0 | 126.5 - 127.0 | 65 | CMCB-R3/2 | CFCB-R3/2 |
| DN50 - BG8 - ISO 50 | G 2" | 63.20 - 66.60 | 38.2 | 105.0 | 142.0 - 142.0 | 90 | CMCB-R2/1 | CFCB-R2/1 |
