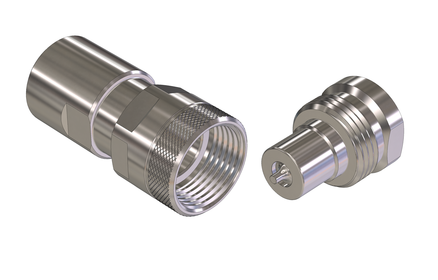

Interchangeabilité VVS Faster
Obturation : clapet
Accrochage : à visser
Matériel : acier inoxydable AISI 316
Taraudages : BSP / NPT
Joint standard : FKM (en option : FFKM, EPDM,...)
T°C service : -25°C / +200°C
Pression de service : 210-900 bar
Connexion sous pression : OUI

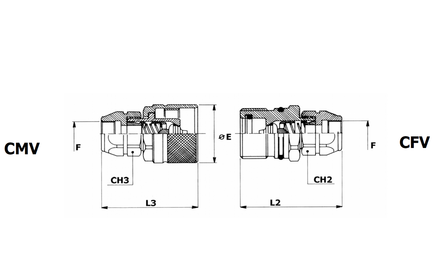

| DN / BG / ISO | F | Filetage | E (mm) | HEX à visser (mm) | L2 - L3 (mm) | CH2 - CH3 (mm) | REF MALE | REF FEMELLE |
|---|---|---|---|---|---|---|---|---|
| DN06 - BG1 - ISO 6.3 | G 1/4" | 1"-12 UNF | 30.0 | 27 | 43.2 - 68.0 | 25 - 22 | XCMV-R1/4 | XCFV-R1/4 |
| DN10 - BG2 - ISO 10 | G 3/8" | 1"1/4-8 UNF | 40.0 | 36 | 48.0 - 76.0 | 32 - 27 | XCMV-R3/8 | XCFV-R3/8 |
| DN13 - BG3 - ISO 12.5 | G 1/2" | 1"3/8-8 UNF | 45.0 | 41 | 53.0 - 87.0 | 34 - 34 | XCMV-R1/2 | XCFV-R1/2 |
| DN20 - BG4 - ISO 20 | G 3/4" | 1"3/4-6 UNF | 55.0 | 50 | 63.0 - 106.0 | 46 - 41 | XCMV-R3/4 | XCFV-R3/4 |
| DN25 - BG5 - ISO 25 | G 1" | M52x4 | 60.0 | 55 | 72.0 - 123.0 | 50 - 50 | XCMV-R1/1 | XCFV-R1/1 |
| DN30 - BG6 - ISO 31.5 | G 1"1/4 | M38x6 | 80.0 | 75 | 86.0 - 153.0 | 65 - 65 | XCMV-R5/4 | XCFV-R5/4 |
| DN39 - BG7 - ISO 40 | G 1"1/2 | M78x6 | 98.0 | 90 | 95.0 - 172.0 | 80 - 75 | XCMV-R3/2 | XCFV-R3/2 |
| DN50 - BG8 - ISO 50 | G 2" | M115x8 | 129.0 | 125 | 118.0 - 205.0 | 110 - 100 | XCMV-R2/1 | XCFV-R2/1 |
