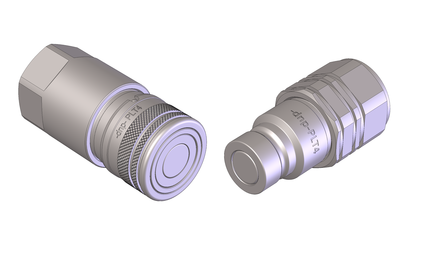

Norme ISO 16028
Obturation : clapet plat
Accrochage : billes radiales
Matériel : acier Zn-Fe (Cr III)
Taraudages : BSP / NPT / SAE / METRIQUES
Joint standard : NBR et PU (en option : FKM, EPDM,...)
T°C service : -25°C / +100°C
Pression de service : 250-500 bar
Connexion sous pression : NON

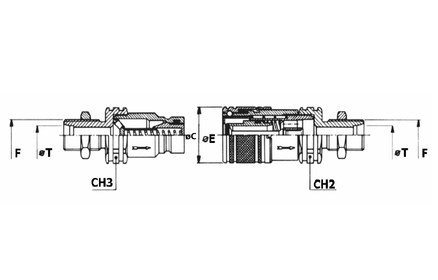

| DN / BG / ISO | F - T | C (mm) | E (mm) | L2 - L3 (mm) | CH2 - CH3 (mm) | REF MALE | REF FEMELLE |
|---|---|---|---|---|---|---|---|
| DN20 - BG3 - ISO 12.5 | 12L - M18x1.5 | 24.6 | 38.0 | 96.5 - 85.0 | 36 | CMAP12T12LPC | CFAP12T12LPC |
| DN20 - BG3 - ISO 12.5 | 15L - M22x1.5 | 24.6 | 38.0 | 97.5 - 86.0 | 36 | CMAP12T15LPC | CFAP12T15LPC |
| DN20 - BG3 - ISO 12.5 | 18L - M16x1.5 | 24.6 | 38.0 | 97.5 - 86.0 | 36 | CMAP12T18LPC | CFAP12T18LPC |
| DN20 - BG3 - ISO 12.5 | 22L - M30x2.0 | 24.6 | 38.0 | 104.5 - 93.0 | 36 | CMAP12T22LPC | CFAP12T22LPC |
| DN20 - BG3 - ISO 12.5 | 10S - M18x1.5 | 24.6 | 38.0 | 97.5 - 86.0 | 36 | CMAP12T10SPC | CFAP12T10SPC |
| DN20 - BG3 - ISO 12.5 | 12S - M20x1.5 | 24.6 | 38.0 | 87.5 - 86.0 | 36 | CMAP12T12SPC | CFAP12T12SPC |
| DN20 - BG3 - ISO 12.5 | 14S - M22x1.5 | 24.6 | 38.0 | 99.5 - 88.0 | 36 | CMAP12T14SPC | CFAP12T14SPC |
| DN20 - BG3 - ISO 12.5 | 16S - M24x1.5 | 24.6 | 38.0 | 99.5 - 88.0 | 36 | CMAP12T16SPC | CFAP12T16SPC |
| DN20 - BG3 - ISO 12.5 | 20S - M30x2.0 | 24.6 | 38.0 | 104.5 - 93.0 | 36 | CMAP12T20SPC | CFAP12T20SPC |
