Norme ISO 16028
Obturation : clapet plat
Accrochage : billes radiales
Matériel : acier Zn-Fe (Cr III)
Taraudages : BSP / NPT / SAE / METRIQUES
Joint standard : NBR et PU (en option : FKM, EPDM,...)
T°C service : -25°C / +100°C
Pression de service : 250-500 bar
Connexion sous pression : NON

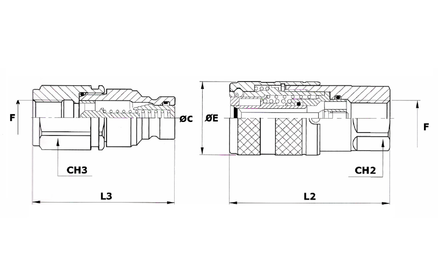

| DN / BG / ISO | F | C (mm) | E (mm) | L2 - L3 (mm) | CH2 - CH3 (mm) | REF MALE | REF FEMELLE |
|---|---|---|---|---|---|---|---|
| DN04 - BG0 -ISO 5 | G 1/8" | 13.6 | 25.0 | 48.6 - 43.5 | 17 | CMAP-R1/8 | CFAP-R1/8 |
| DN06 - BG1 - ISO 6.3 | G 1/4" | 16.2 | 28.0 | 58.5 - 52.0 | 22 | CMAP-R1/4 | CFAP-R1/4 |
| DN13 - BG2 - ISO 10 | G 3/8" | 19.8 | 32.0 | 73.5 - 60.5 | 30 | CMAP-R3/8 | CFAP-R3/8 |
| DN13 - BG2 - ISO 10 | G 1/2" | 19.8 | 32.0 | 73.5 - 60.5 | 30 | CMAP-R1/2 | CFAP-R1/2 |
| DN20 - BG3 - ISO 12.5 | G 1/2" | 24.6 | 38.0 | 83.5 - 72.5 | 36 | CMAP-R1/2-DN20 | CFAP-R1/2-DN20 |
| DN22 - BG4A - ISO 16 | G 1/2" | 27.0 | 42.0 | 86.0 - 72.5 | 36 | CMAP-R1/2-DN22 | CFAP-R1/2-DN22 |
| DN20 - BG3 - ISO 12.5 | G 3/4" | 24.6 | 38.0 | 83.5 - 72.5 | 36 | CMAP-R3/4 | CFAP-R3/4 |
| DN22 - BG4A - ISO 16 | G 3/4" | 27.0 | 42.0 | 86.0 - 74.5 | 36 | CMAP-R3/4-DN22 | CFAP-R3/4-DN22 |
| DN25 - BG4 - ISO 19 | G 1" | 30.0 | 48.0 | 97.5 - 86.0 | 41 | CMAP-R1/1 | CFAP-R1/1 |
