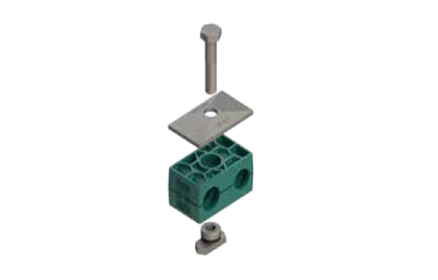

COLLIER COMPLET COMPOSÉ DE : PAIRE DE COQUILLES DOUBLE, 1 ECROU DE RAIL, PLAQUE DE PROTECTION, 1 VIS TH INOX 316L
Matières coquilles :
PP = Polypropylène vert
PA = Polyamide noir
AL = Aluminum

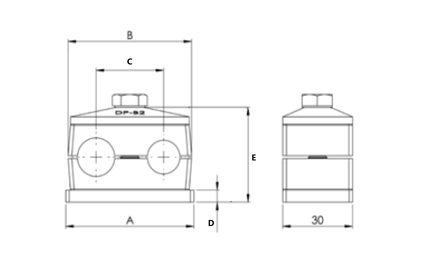

| GROUPE DIN | d1/d2 mm | GAZ | OD | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | REFERENCE | MATIERE COQUILLES |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 6 | 37 | 36 | 20 | 3 | 37 | A4-3.11.006 | - PP / -PA / -AL | ||
| 1 | 6.4 | 1/4" | - | - | - | - | - | A4-3.11.0064 | - PP / -PA / -AL | |
| 1 | 8 | 5/16" | - | - | - | - | - | A4-3.11.008 | - PP / -PA / -AL | |
| 1 | 9.5 | 3/8" | - | - | - | - | - | A4-3.11.0095 | - PP / -PA / -AL | |
| 1 | 10 | G1/8" | - | - | - | - | - | A4-3.11.010 | - PP / -PA / -AL | |
| 1 | 12 | - | - | - | - | - | A4-3.11.012 | - PP / -PA / -AL | ||
| 2 | 12.7 | 1/2" | 55 | 53 | 29 | 5 | 39.4 | A4-3.22.0127 | - PP / -PA / -AL | |
| 2 | 13.5 | G1/4" | - | - | - | - | - | A4-3.22.0135 | - PP / -PA / -AL | |
| 2 | 14 | - | - | - | - | - | A4-3.22.014 | - PP / -PA / -AL | ||
| 2 | 15 | - | - | - | - | - | A4-3.22.015 | - PP / -PA / -AL | ||
| 2 | 16 | 5/8" | - | - | - | - | - | A4-3.22.016 | - PP / -PA / -AL | |
| 2 | 17.2 | G3/8" | - | - | - | - | - | A4-3.22.0172 | - PP / -PA / -AL | |
| 2 | 18 | - | - | - | - | - | A4-3.22.018 | - PP / -PA / -AL | ||
| 3 | 19 | 3/4" | 70 | 67 | 36 | 5 | 49 | A4-3.33.019 | - PP / -PA / -AL | |
| 3 | 20 | - | - | - | - | - | A4-3.33.020 | - PP / -PA / -AL | ||
| 3 | 21.3 | G1/2" | - | - | - | - | - | A4-3.33.0213 | - PP / -PA / -AL | |
| 3 | 22 | - | - | - | - | - | A4-3.33.022 | - PP / -PA / -AL | ||
| 3 | 25 | - | - | - | - | - | A4-3.33.025 | - PP / -PA / -AL | ||
| 3 | 25.4 | 1" | - | - | - | - | - | A4-3.33.0254 | - PP / -PA / -AL | |
| 4 | 26.9 | G3/4" | 85 | 82 | 45 | 5 | 54 | A4-3.44.0269 | - PP / -PA / -AL | |
| 4 | 28 | - | - | - | - | - | A4-3.44.028 | - PP / -PA / -AL | ||
| 4 | 30 | - | - | - | - | - | A4-3.44.030 | - PP / -PA / -AL | ||
| 5 | 32 | 1"1/4 | 110 | 102 | 56 | 5 | 66 | A4-3.55.032 | - PP / -PA / -AL | |
| 5 | 33.7 | G1" | - | - | - | - | - | A4-3.55.0337 | - PP / -PA / -AL | |
| 5 | 35 | - | - | - | - | - | A4-3.55.035 | - PP / -PA / -AL | ||
| 5 | 38 | 1"1/2 | - | - | - | - | - | A4-3.55.038 | - PP / -PA / -AL | |
| 5 | 40 | - | - | - | - | - | A4-3.55.040 | - PP / -PA / -AL | ||
| 5 | 42 | G1"1/4 | - | - | - | - | - | A4-3.55.042 | - PP / -PA / -AL |
