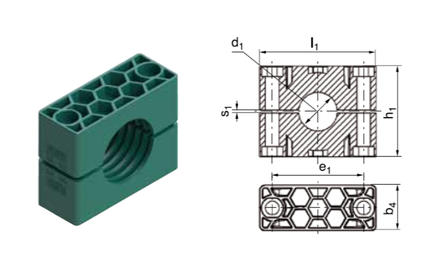

Paire de coquilles série lourde nues
Matières coquilles :
PP = Polypropylène vert
PA = Polyamide noir
AL = Aluminum
| GROUPE DIN | d1 mm | GAZ | OD | l1 (mm) | h1 (mm) | e1 (mm) | s1 (mm) | b4 (mm) | REFERENCE | MATIERE COQUILLES |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 6 | 56 | 32 | 33 | 2 | 30 | 30.006 | -PP / -PA / -AL | ||
| 1 | 8 | 5/16" | - | - | - | - | - | 30.008 | -PP / -PA / -AL | |
| 1 | 9.5 | 3/8" | - | - | - | - | - | 30.0095 | -PP / -PA / -AL | |
| 1 | 10 | G1/8" | - | - | - | - | - | 30.010 | -PP / -PA / -AL | |
| 1 | 12 | - | - | - | - | - | 30.012 | -PP / -PA / -AL | ||
| 1 | 12.7 | 1/2" | - | - | - | - | - | 30.0127 | -PP / -PA / -AL | |
| 1 | 13.5 | G1/4" | - | - | - | - | - | 30.0135 | -PP / -PA / -AL | |
| 1 | 14 | - | - | - | - | - | 30.014 | -PP / -PA / -AL | ||
| 1 | 15 | - | - | - | - | - | 30.015 | -PP / -PA / -AL | ||
| 1 | 16 | 5/8" | - | - | - | - | - | 30.016 | -PP / -PA / -AL | |
| 1 | 17.2 | G3/8" | - | - | - | - | - | 30.0172 | -PP / -PA / -AL | |
| 1 | 18 | - | - | - | - | - | 30.018 | -PP / -PA / -AL | ||
| 2 | 19 | 3/4" | 71 | 48 | 45 | 2 | 30 | 40.019 | -PP / -PA / -AL | |
| 2 | 20 | - | - | - | - | - | 40.020 | -PP / -PA / -AL | ||
| 2 | 21.3 | G1/2" | - | - | - | - | - | 40.0213 | -PP / -PA / -AL | |
| 2 | 22 | - | - | - | - | - | 40.022 | -PP / -PA / -AL | ||
| 2 | 23 | - | - | - | - | - | 40.023 | -PP / -PA / -AL | ||
| 2 | 25 | - | - | - | - | - | 40.025 | -PP / -PA / -AL | ||
| 2 | 25.4 | 1" | - | - | - | - | - | 40.0254 | -PP / -PA / -AL | |
| 2 | 26.9 | G3/4" | - | - | - | - | - | 40.0269 | -PP / -PA / -AL | |
| 2 | 28 | - | - | - | - | - | 40.028 | -PP / -PA / -AL | ||
| 2 | 30 | - | - | - | - | - | 40.030 | -PP / -PA / -AL | ||
| 3 | 30 | 86 | 60 | 60 | 2 | 30 | 50.030 | -PP / -PA / -AL | ||
| 3 | 32 | 1"1/4 | - | - | - | - | - | 50.032 | -PP / -PA / -AL | |
| 3 | 33.7 | G1" | - | - | - | - | - | 50.0337 | -PP / -PA / -AL | |
| 3 | 35 | - | - | - | - | - | 50.035 | -PP / -PA / -AL | ||
| 3 | 38 | 1"1/2 | - | - | - | - | - | 50.038 | -PP / -PA / -AL | |
| 3 | 40 | - | - | - | - | - | 50.040 | -PP / -PA / -AL | ||
| 3 | 42 | G1"1/4 | - | - | - | - | - | 50.042 | -PP / -PA / -AL | |
| 4 | 38 | 1"1/2 | 117 | 90 | 90 | 3 | 45 | 60.042 | -PP / -PA / -AL | |
| 4 | 40 | - | - | - | - | - | 60.040 | -PP / -PA / -AL | ||
| 4 | 42 | G1"1/4 | - | - | - | - | - | 60.042 | -PP / -PA / -AL | |
| 4 | 45 | - | - | - | - | - | 60.045 | -PP / -PA / -AL | ||
| 4 | 48.3 | G1"1/2 | - | - | - | - | - | 60.0483 | -PP / -PA / -AL | |
| 4 | 50 | - | - | - | - | - | 60.050 | -PP / -PA / -AL | ||
| 4 | 51 | 2" | - | - | - | - | - | 60.051 | -PP / -PA / -AL | |
| 4 | 52 | - | - | - | - | - | 60.052 | -PP / -PA / -AL | ||
| 4 | 55 | - | - | - | - | - | 60.055 | -PP / -PA / -AL | ||
| 4 | 57 | 2"1/4 | - | - | - | - | - | 60.057 | -PP / -PA / -AL | |
| 4 | 60.3 | G2" | - | - | - | - | - | 60.0603 | -PP / -PA / -AL | |
| 4 | 63 | 2"1/2 | - | - | - | - | - | 60.063 | -PP / -PA / -AL | |
| 4 | 65 | - | - | - | - | - | 60.065 | -PP / -PA / -AL | ||
| 4 | 70 | 2"3/4 | - | - | - | - | - | 60.070 | -PP / -PA / -AL | |
| 5 | 65 | 154 | 120 | 122 | 5 | 60 | 70.065 | -PP / -PA / -AL | ||
| 5 | 70 | 2"3/4 | - | - | - | - | - | 70.070 | -PP / -PA / -AL | |
| 5 | 73 | - | - | - | - | - | 70.073 | -PP / -PA / -AL | ||
| 5 | 75 | - | - | - | - | - | 70.075 | -PP / -PA / -AL | ||
| 5 | 76.1 | G2"1/2 | 3" | - | - | - | - | - | 70.0761 | -PP / -PA / -AL |
| 5 | 80 | - | - | - | - | - | 70.080 | -PP / -PA / -AL | ||
| 5 | 82.5 | - | - | - | - | - | 70.0825 | -PP / -PA / -AL | ||
| 5 | 85 | - | - | - | - | - | 70.085 | -PP / -PA / -AL | ||
| 5 | 88.9 | G3" | 3"1/2 | - | - | - | - | - | 70.0889 | -PP / -PA / -AL |
| 5 | 90 | - | - | - | - | - | 70.090 | -PP / -PA / -AL | ||
| 6 | 90 | 206 | 168 | 168 | 6 | 80 | 80.090 | -PP / -PA / -AL | ||
| 6 | 97 | - | - | - | - | - | 80.097 | -PP / -PA / -AL | ||
| 6 | 100 | - | - | - | - | - | 80.100 | -PP / -PA / -AL | ||
| 6 | 101.6 | G3"1/2 | 4" | - | - | - | - | - | 80.101.6 | -PP / -PA / -AL |
| 6 | 108 | - | - | - | - | - | 80.108 | -PP / -PA / -AL | ||
| 6 | 114.3 | G4" | 4"1/2 | - | - | - | - | - | 80.114 | -PP / -PA / -AL |
| 6 | 127 | 5" | - | - | - | - | - | 80.127 | -PP / -PA / -AL | |
| 7 | 127 | 5" | 241 | 200 | 205 | 6 | 90 | 90.127 | -PP / -PA / -AL | |
| 7 | 130 | - | - | - | - | - | 90.130 | -PP / -PA / -AL | ||
| 7 | 133 | - | - | - | - | - | 90.133 | -PP / -PA / -AL | ||
| 7 | 140 | G5" | - | - | - | - | - | 90.140 | -PP / -PA / -AL | |
| 7 | 150 | - | - | - | - | - | 90.150 | -PP / -PA / -AL | ||
| 7 | 152.4 | 6" | - | - | - | - | - | 90.152 | -PP / -PA / -AL | |
| 7 | 159 | - | - | - | - | - | 90.159 | -PP / -PA / -AL | ||
| 7 | 165.1 | - | - | - | - | - | 90.165 | -PP / -PA / -AL | ||
| 7 | 168.3 | G6" | - | - | - | - | - | 90.168 | -PP / -PA / -AL | |
| 8 | 168.3 | G6" | - | - | - | - | - | 100.168 | -PP / -PA / -AL | |
| 8 | 177.8 | - | - | - | - | - | 100.177 | -PP / -PA / -AL | ||
| 8 | 193.7 | - | - | - | - | - | 100.193 | -PP / -PA / -AL | ||
| 8 | 203 | 8" | - | - | - | - | - | 100.203 | -PP / -PA / -AL | |
| 8 | 219.1 | G8" | - | - | - | - | - | 100.219 | -PP / -PA / -AL | |
| 8 | 220 | - | - | - | - | - | 100.220 | -PP / -PA / -AL |
