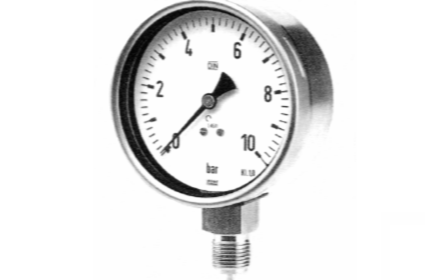

Manomètres DN 63 et DN 100
Caractéristiques :
Pour l'inox : Boîtier inox, classe 1,6, à bain de glycérine, organes manométriques en inox.
Pour l'acier : Boîtier inox, classe 1,6, à bain de glycérine, organes manométriques en métaux cuivreux.
Ne jamais visser un manomètre en le tournant par le boîtier : Serrer le manomètre par le raccord.

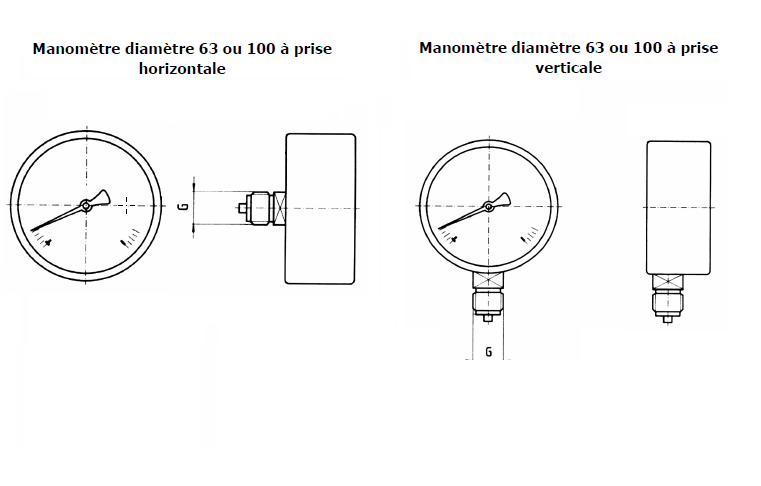

Manomètres diamètre 63 : G = 1/4"
Manomètres diamètre 100 : G = 1/2"
Plage de pression en Bar |
PREFIXE INOX | DN 63 VERTICAL ACIER G 1/4" | DN 63 HORIZONTAL ACIER G 1/4" | PREFIXE INOX | DN 100 VERTICAL ACIER G 1/2" | DN 100 HORIZONTAL ACIER G 1/2" |
|---|---|---|---|---|---|---|
| -1 - 0 | X | MA63/-1-0IGV | MA63/-1-0IGA | X | MA100/-1-0IGV | MA100/-1-0IGA |
| 0 - 1,6 | X | MA63/1.6IGV | MA63/1.6IGA | X | MA100/1.6IGV | MA100/1.6IGA |
| 0 - 2,5 | X | MA63/2.5IGV | MA63/2.5IGA | X | MA100/2.5IGV | MA100/2.5IGA |
| 0 - 4,0 | X | MA63/4IGV | MA63/4IGA | X | MA100/4IGV | MA100/4IGA |
| 0 - 6,0 | X | MA63/6IGV | MA63/6IGA | X | MA100/6IGV | MA100/6IGA |
| 0 - 10,0 | X | MA63/10IGV | MA63/10IGA | X | MA100/10IGV | MA100/10IGA |
| 0 - 16,0 | X | MA63/16IGV | MA63/16IGA | X | MA100/16IGV | MA100/16IGA |
| 0 - 25,0 | X | MA63/25IGV | MA63/25IGA | X | MA100/25IGV | MA100/25IGA |
| 0 - 40,0 | X | MA63/40IGV | MA63/40IGA | X | MA100/40IGV | MA100/40IGA |
| 0 - 60,0 | X | MA63/60IGV | MA63/60IGA | X | MA100/60IGV | MA100/60IGA |
| 0 - 100 | X | MA63/100IGV | MA63/100IGA | X | MA100/100IGV | MA100/100IGA |
| 0 - 160 | X | MA63/160IGV | MA63/160IGA | X | MA100/160IGV | MA100/160IGA |
| 0 - 250 | X | MA63/250IGV | MA63/250IGA | X | MA100/250IGV | MA100/250IGA |
| 0 - 315 | X | MA63/315IGV | MA63/315IGA | X | MA100/315IGV | MA100/315IGA |
| 0 - 400 | X | MA63/400IGV | MA63/400IGA | X | MA100/400IGV | MA100/400IGA |
| 0 - 600 | X | MA63/600IGV | MA63/600IGA | X | MA100/600IGV | MA100/600IGA |
| 0 - 1000 | X | MA63/1000IGV | MA63/1000IGA | X | MA100/1000IGV | MA100/1000IGA |
