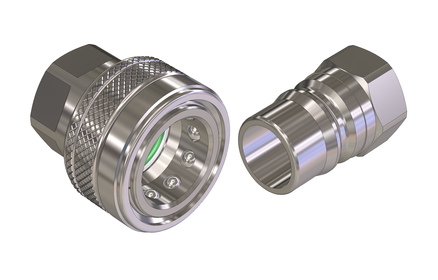

Norme ISO 7241-1B
Obturation : passage libre
Accrochage : billes radiales
Matériel : acier inoxydable AISI 316
Taraudages : BSP / NPT
Joint standard : FKM (en option : FFKM, EPDM,...)
T°C service : -25°C / +200°C
Pression de service : 60-350 bar
Connexion sous pression : NON

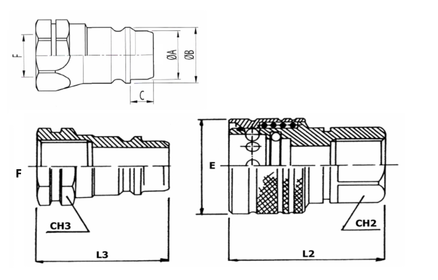

| DN / BG / ISO | F | A - B (mm) | C (mm) | E (mm) | L2 - L3 (mm) | CH2 - CH3 (mm) | REF MALE | REF FEMELLE |
|---|---|---|---|---|---|---|---|---|
| DN06 - BG1 - ISO 6.3 | G 1/4" | 14.20 - 15.50 | 9.9 | 28.0 | 35.0 - 38.0 | 19 | XCMPLB-R1/4 | XCFPLB-R1/4 |
| DN10 - BG2 - ISO 10 | G 3/8" | 19.10 - 19.90 | 12.7 | 35.0 | 39.0 - 42.0 | 24 - 22 | XCMPLB-R3/8 | XCFPLB-R3/8 |
| DN13 - BG3 - ISO 12.5 | G 1/2" | 23.55 - 25.60 | 12.3 | 44.0 | 45.0 - 46.0 | 27 | XCMPLB-R1/2 | XCFPLB-R1/2 |
| DN20 - BG4 - ISO 20 | G 3/4" | 31.45 - 32.75 | 18.9 | 52.0 | 53.5 - 54.0 | 36 - 34 | XCMPLB-R3/4 | XCFPLB-R3/4 |
| DN25 - BG5 - ISO 25 | G 1" | 37.80 - 40.30 | 21.0 | 60.0 | 63.0 - 64.0 | 41 | XCMPLB-R1/1 | XCFPLB-R1/1 |
| DN39 - BG7 - ISO 40 | G 1"1/4 | 44.50 - 48.00 | 32.7 | 75.0 | 85.0 - 85.0 | 65 - 60 | XCMPLB-R5/4 | XCFPLB-R5/4 |
| DN39 - BG7 - ISO 40 | G 1" 1/2 | 44.50 - 48.00 | 32.7 | 75.0 | 85.0 - 85.0 | 65 - 60 | XCMPLB-R3/2 | XCFPLB-R3/2 |
| DN50 - BG8 - ISO 50 | G 2" | 63.20 - 66.60 | 38.2 | 105.0 | 100.0 - 100.0 | 80- 70 | XCMPLB-R2/1 | XCFPLB-R2/1 |
